Electronic water pump Your Location:Home >> Products >> Electronic water pump

YT40 series
 createdate:2017/7/19 10:49:25 hits:5085


YT-40 series is applied electric cars,hybird vehicles,electric commercial vehicles,main motor cooling,control module cooling,battery and charging device cooling,applied as the power source of the vehile air conditioning warm air system heating circuit, also can be applied to traditional fuel vehicle engine turbocharger cooling.

specification

1、Rated Voltage:DC13V

2、DC13V test:pressure difference of inlet and outlet30Kpa test,flow≥20L/min;

3、Rated Current≤3A;

4、Quiescent Current:≤3mA;

5、working voltage:8V—16V;

6、working temperature:-40℃~100℃;

7、Duty:S1

8、Protection grade:IP68

9、Control style:Fixed-speed/PWM/LIN

10、Noise:≤50dB

11、working life≥11000 hours

YT40 Series:

   YT40-00(40W Fixed-speed)

   YT40-01(40W variable speed-PWM)

   YT40-02(40W variable speed-LIN)

   YT40-03(60W Fixed-speed)

   YT40-04(60W variable speed-PWM)

   YT40-05(60W variable speed- LIN)

   YT40-06(70W Fixed-speed)

   YT40-07(70W variable speed- PWM)

   YT40-10(40W/24V Fixed-speed)

   YT40-11(40W/24V variable speed-PWM)

   YT40-16(90W/24V Fixed-speed)

   YT40-17(90W/24V variable speed-PWM

YT40 10.jpg

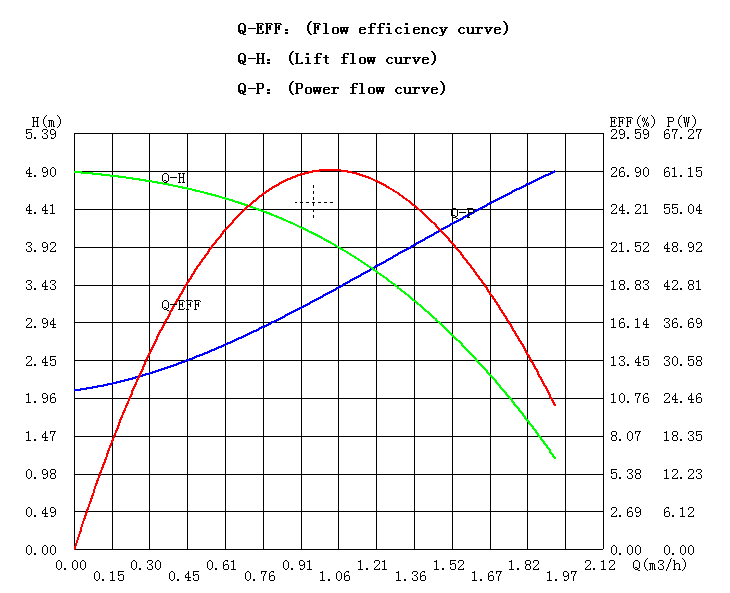

Performance diagram


Packing chart



Production line

pre: YT20 series
